Broadcasting with Turbo Streams — making everyone’s browser light up at once

Part 2 of the article series written by o3 to teach me Hotwire concepts

Turbo Stream Broadcasting Guide

A companion to your Turbo Streams 101 write‑up — this piece focuses only on the push side of things: getting the server to light up every subscriber’s browser in real time.

---

0. The 30‑second teaser

• Responding = pull → browser asks, server answers (HTML, JSON, whatever).

• Broadcasting = push → server decides “something changed” and pushes an HTML diff to all interested browsers via WebSockets.

No refreshing, no polling, no extra JS — Hotwire wraps it all for you.

---

1. “What’s a WebSocket, anyway?”

Plain English: A WebSocket is a pipe that stays open. Instead of the browser and server playing “you first / no, you first” (HTTP request → response → new request), they establish one long‑lived TCP connection and both can speak whenever they like.

• Analogy: Think of HTTP as sending letters; a WebSocket is opening a phone line.

• Hard part (that seniors gripe about): keeping that phone line alive across proxies, load balancers, and scale‑out servers.

• Rails’ gift: ActionCable. It hides the plumbing and gives you a pub/sub API. Turbo Rails then adds a cherry on top: it turns every pub/sub message into an easy‑to‑digest <turbo-stream> envelope so you never serialize JSON by hand.

In short, yes — Rails runs the WebSocket server for you (via Puma threads), and you mostly forget it’s there.

---

2. Big‑picture mental model (pull vs push)

📄 View: <%= turbo_stream_from @chatroom %>
     ↕   ← opens →   📞 WebSocket channel "chatroom_7"
💾 Model save (Message#create)
     ↓   triggers   🚀 broadcast_append_to "chatroom_7"
<turbo-stream action="append" target="messages_7">…html…</turbo-stream>
     ↓
🖥️  Browser JS receives frame, Turbo inserts <li> into the list

The request/response cycle never fires — the server simply pushes a DOM change.

---

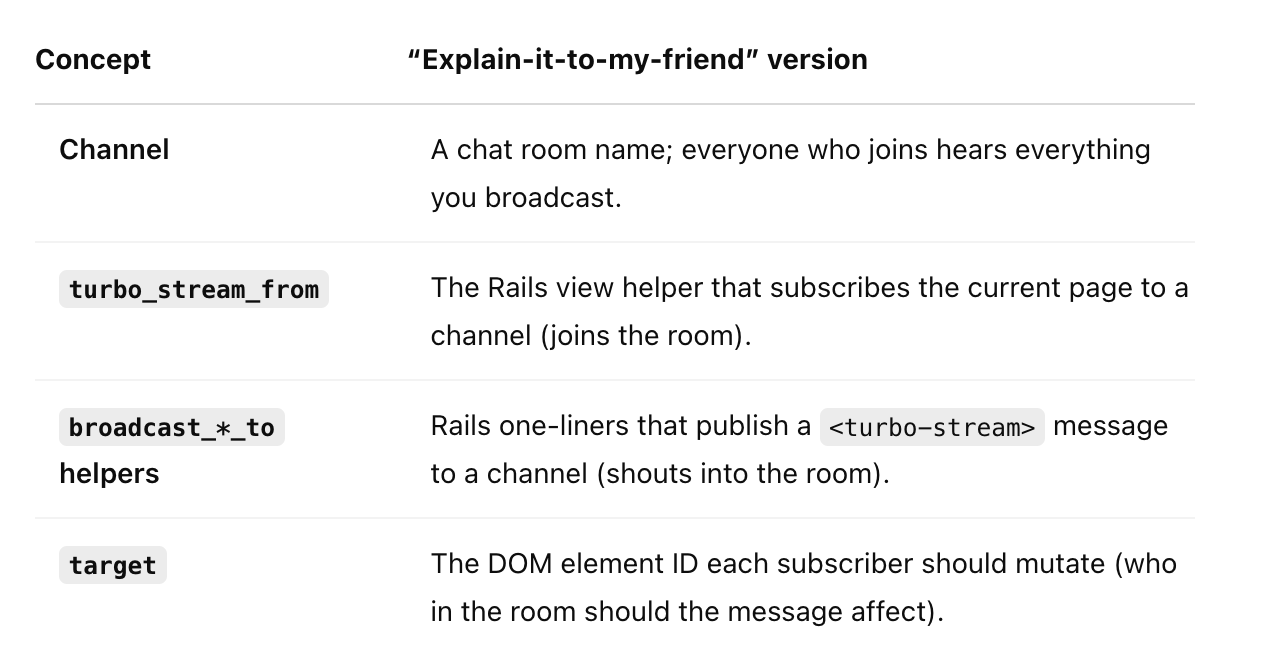

3. Building blocks in everyday English

No matter which helper you call, the payload is always HTML, never JSON.

---

4. Three ways to broadcast — and when to choose each

Quick heuristic: 90 % of the time start with broadcasts_to — graduate to manual only when lifecycle or payload deviates from CRUD.

---

5. Example 1 — live chat in four lines of code

1. Model

class Message < ApplicationRecord
  belongs_to :room
  broadcasts_to :room, inserts_by: :append,
               target: ->(msg) { "messages_#{msg.room.id}" }
end

2. View subscription

<%= turbo_stream_from @room %>
<ul id="messages_<%= @room.id %>">
  <%= render @room.messages %>
</ul>

1. Timeline in words

   • Browser A submits the form → standard controller response updates its own DOM.

   • After Message saves, the model callback broadcasts an append stream to channel room_7.

   • Browser B (already subscribed) receives the <turbo-stream> frame and inserts the new <li>.

Zero hand‑written JavaScript.

---

6. Example 2 — background job progress bar (manual broadcast)

class ImportJob < ApplicationJob
  def perform(import)
    total = import.csv.count
    processed = 0

    import.csv.each do |row|
      ImportRow.create!(row: row, import: import)
      processed += 1

      percent = (processed.to_f / total * 100).round

      Turbo::StreamsChannel.broadcast_replace_to "import_#{import.id}",
        target:  "progress_bar_#{import.id}",
        partial: "imports/progress",
        locals:  { percent: percent }
    end
  end
end

• Why manual? No model save corresponds one‑to‑one with “update progress bar”; we decide the cadence.

• Loosely coupled: Web UI stays responsive while job churns in Sidekiq.

View side:

<%= turbo_stream_from "import_#{@import.id}" %>
<div id="progress_bar_<%= @import.id %>">
  <%= render "imports/progress", percent: 0 %>
</div>

---

7. Private / namespaced channels explained

A channel name is just a string. Make it descriptive and safe:

<%= turbo_stream_from [current_user, :inbox] %>  ➜ "user_42_inbox"  (only they can see their DMs)

Rails encodes the composite into a channel name under the hood. Because subscription code runs in the view, you can gate it behind if current_user.admin? or similar — keeping secrets secret.

---

8. When not to broadcast (expanded)

Broadcasting is wonderful — but like any megaphone, shouting all the time clogs the airwaves.

---

9. Why do we suddenly care about performance? (and where Redis fits)

• WebSockets are stateful. Each open socket consumes memory and threads. Ten users? Fine. Ten thousand? You need orchestration.

• Redis = the pub/sub switchboard. By default Action Cable points every app server at Redis. When one server publishes a message, Redis fans it out to subscribers connected to any server, keeping everyone in sync.

• Scaling path

  1. Dev / small prod – in‑process adapter (no Redis) is okay for a few hundred connections.

  2. Standard prod – Redis adapter ➜ tens of thousands of sockets.

  3. Very large – AnyCable (GRPC + Go) or Phoenix PubSub ➜ hundreds of thousands.

• Cost hotspots

  • Rendering partials for each broadcast (CPU) → mitigate with fragment caching.

  • Network frames per second (bandwidth) → batch or debounce.

  • Redis fan‑out (memory) → shard or use a dedicated Redis cluster.

Rule of thumb: Start simple with Redis. Benchmark before you panic — HTML diffs are tiny, and Hotwire sites often surprise you by scaling further than expected.

---

10. Testing & debugging in human terms

1. Browser dev tools → Network → WS → Frames — you should see <turbo-stream> snippets arriving.

2. Rails logs → set config.action_cable.log_tags = [ :action_cable ] in development for verbose channel chatter.

3. Rails tests

assert_broadcast_on("room_7", /<turbo-stream action=\"append\"/)

1. curl trick

curl -H "Accept: text/vnd.turbo-stream.html" \
     -d "body=Hello" http://localhost:3000/messages

1. – see the raw stream the browser would get.

---

11. Quick‑start checklist (copy/paste)

# 1. Model
class Comment < ApplicationRecord
  belongs_to :post
  broadcasts_to :post, inserts_by: :prepend
end

# 2. View
<%= turbo_stream_from @post %>
<ul id="comments_<%= @post.id %>">
  <%= render @post.comments %>
</ul>

# 3. Done – multi‑user live comments in two lines.

---

One‑sentence takeaway

Broadcasting turns Turbo Streams from “my action updated my page” into “any change anywhere updates everyone’s page instantly,” powered by WebSockets that Rails hides behind cozy helpers — Redis just makes sure all your app servers stay in sync.
